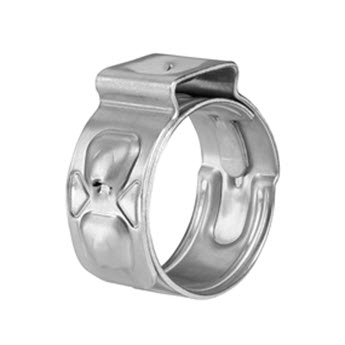

StepLess® Ear Clamps PEXGrip® Pro 263

Contact Us
  • 360° StepLess®: uniform 360° compression and uniform surface pressure
  • PEX plumbing connection: fast and secure installation
  • Standard ear size: one installation tool for all clamp sizes
  • Design: tamper evident
  • High performance: strong and durable interlock
  • TECHNICAL DATA OVERVIEW


    PEXGrip®:
    - The PEXGrip® patented series is pre-set to prevent the clamp from sliding. It grips the tube for easy installation.


    ShieldLock®:
    - ShieldLock® patented design for stronger interlock, higher performance, and no band over-elongation.

    NSF Product listing:
    - Complies with NSF product listing cNSFus-PW.

    ASTM F2098 Standard:

    - ASTM F2098 for use with ASTM F1807 and F2159

    insert fittings and ASTM F876 PEX, or F2769 PE-RT Tubing.


    - Conforms to ASTM F877.



    CSA Standard:
    - Conforms to CSA B137.5.

    Warning:
    - In high chloride water conditions, use only plastic fittings.
    - Do not install in contact with concrete.
    - Use only ASTM F1807 or F2159 Insert Fittings with Oetiker Clamps.

    Currently available in the Americas.


    Assembly Tools

    • Hand Installation Pincers

      Technical Data
    • Cordless Clamp Pincer

      Technical Data
    • Pneumatic Pincers

      Technical Data

    Product Technologies

    • What is ShieldLock®?

      Our Technologies
    • What is StepLess®?

      Our Technologies
    • What is PEXGrip®?

      Our Technologies

    Downloads

    •

      PEXGrip® Pro 263 Instruction Manual

      Instruction Manuals Download
    Return to products
